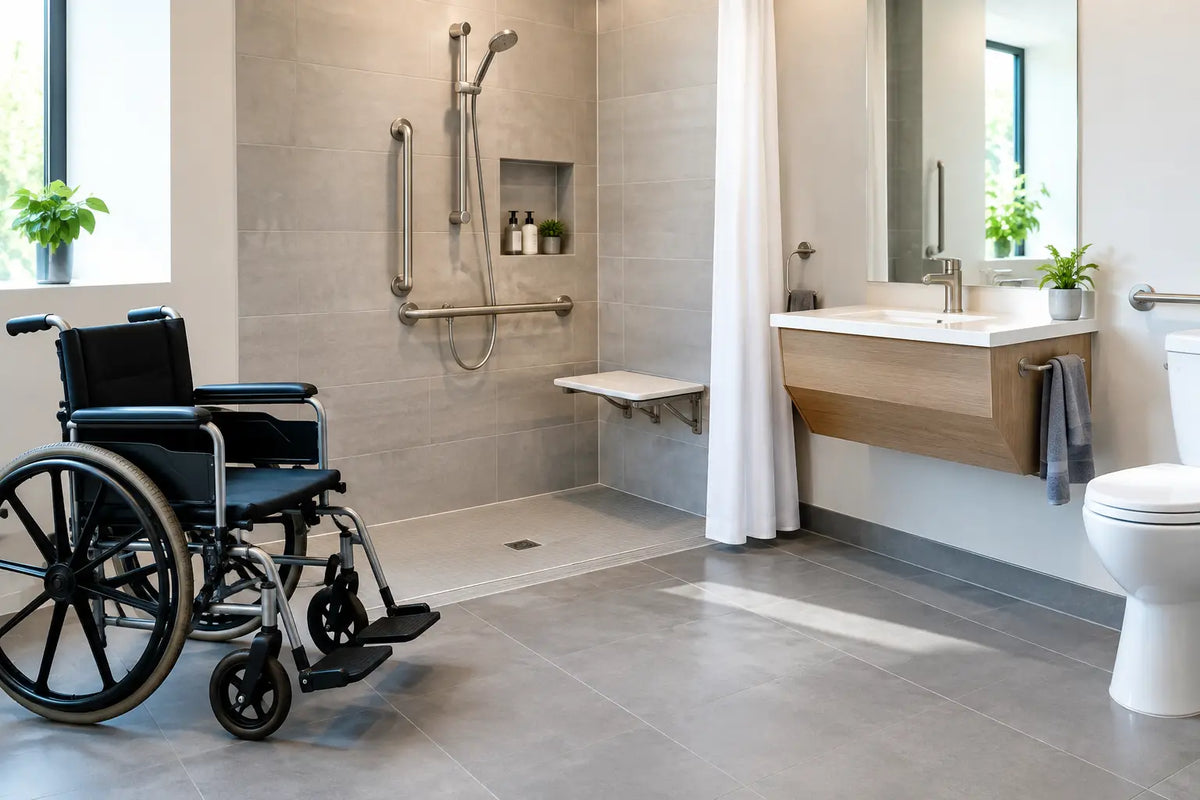

Wheelchair Accessible Bathroom Planning Guide

A bathroom can be the smallest room in the house and still have the biggest impact on daily independence. This wheelchair accessible bathroom planning guide helps you focus on what makes the room truly usable: enough room to move, safe places to transfer, reachable fixtures, and equipment that fits the person using it.

The right plan is not about making a bathroom look medical. It is about reducing the moments that feel risky or exhausting, whether someone is aging in place, recovering from surgery, living with a long-term mobility challenge, or helping a loved one at home. A thoughtful layout can make personal care more comfortable while giving caregivers better room to assist when needed.

Start With the Person, Not the Floor Plan

Before measuring a doorway or choosing a grab bar, think through the user’s daily routine. Do they use a manual wheelchair, power wheelchair, walker, or mobility scooter? Can they stand briefly for a transfer, or do they need a transfer board, caregiver assistance, or a patient lift? Those answers affect nearly every decision.

Also consider whether needs may change. A bathroom that works for a short rehabilitation period may need only a shower chair and a raised toilet seat. A long-term accessibility update may call for a curbless shower, a wider doorway, wall reinforcement for grab bars, and open knee clearance under the sink. Planning for likely future needs can prevent an expensive second remodel.

It helps to watch the current routine before changing anything. Notice where the wheelchair is parked, which direction the person turns, whether they brace against a counter, and where a caregiver has to stand. Those small details reveal more than a generic diagram ever can.

Separate ADA Guidance From a Home Plan

ADA standards are often used as a helpful reference, but a private home is not always required to follow the same rules as a public building. Local building codes, permit requirements, the home’s structure, and the user’s needs all matter. Treat accessibility dimensions as planning targets, then confirm your final design with a qualified contractor or accessibility professional.

A bathroom does not have to be large to become much safer. In a tight space, the best solution may be a compact wall-hung sink, an outswing door, a transfer-friendly shower setup, or a bedside commode for overnight needs. The goal is practical access, not forcing every bathroom into one layout.

Measure for a Wheelchair Accessible Bathroom Plan

Measurements are where a good idea becomes a workable room. Measure the wheelchair itself, including armrests, footrests, and the space needed to turn. If a caregiver assists with transfers, measure for that person too. A layout that technically fits a wheelchair but leaves no room for hands-on help can still be frustrating and unsafe.

Doorways, Turning Space, and Clear Paths

A clear doorway width of at least 32 inches is commonly used as an accessibility target. That is clear opening width, not simply the width of the door slab. Door hinges, trim, and the swing of the door can reduce usable space more than people expect.

Inside the bathroom, many accessible designs allow a 60-inch turning circle or a T-shaped turning area. Depending on the room, a full circle may not be possible, but there should be enough open floor space to enter, close the door, position beside the toilet, and approach the sink and shower without repeated backing up.

Think about door operation as carefully as door width. A door that swings inward can block the wheelchair or trap someone after a fall. An outswing door, pocket door, or barn-style door may free up space, although each option has trade-offs. Pocket doors can limit where grab bars or switches are installed, while barn doors may not provide the same privacy or sound control.

Plan the Toilet Transfer Zone

The toilet area should allow the wheelchair to pull alongside at the user’s stronger or preferred transfer side. Side transfer space is often more useful than extra space directly in front of the toilet. If a person uses a transfer board or needs caregiver help, allow even more room.

A comfort-height toilet or raised toilet seat can reduce the distance of the transfer. Many accessible guidelines place toilet seat height around 17 to 19 inches from the finished floor, but the right height depends on leg length, balance, and transfer technique. A seat that is too high can be just as difficult as one that is too low.

Grab bars should be placed for the actual movement being made, not added as decoration after the room is finished. Common guidance places horizontal bars roughly 33 to 36 inches above the floor, with one on the side wall and one behind the toilet. Secure mounting is essential. Grab bars must anchor into proper wall blocking or studs, not drywall alone.

For some homes, a bariatric commode or over-toilet commode provides a useful solution when a standard toilet setup does not offer enough height, width, or support. It can also be a practical bridge while a permanent renovation is being planned.

Make the Shower Easy to Enter and Use

Stepping over a tub wall is a common source of bathroom falls. A curbless or low-threshold shower removes that obstacle and can allow a wheelchair or shower chair to roll in. A shower with a 36-by-36-inch clear area may work for a standing user with a shower chair, while a larger roll-in shower offers more room for wheelchair access and caregiver support.

The shower floor should slope correctly toward the drain so water does not escape into the rest of the bathroom. Choose slip-resistant flooring and avoid heavily textured surfaces that are hard to clean or make wheels difficult to roll. A handheld shower head on a slide bar, easy-to-reach controls, and a properly installed fold-down seat can make bathing far less tiring.

Do not assume a built-in shower seat is right for every user. Some people prefer their own shower chair or rolling shower commode because it offers familiar support and makes transfers easier. The best choice depends on body size, skin needs, balance, and whether a caregiver is involved.

Keep the Sink and Storage Within Reach

A wheelchair user may need open knee space beneath the sink rather than a vanity cabinet. Common accessible targets include knee clearance about 27 inches high, 30 inches wide, and 19 inches deep. Insulate or protect exposed hot-water pipes so legs are not burned.

Choose a single-lever faucet, touchless faucet, or easy-grip handles rather than small twist knobs. Mirrors, medicine cabinets, towel bars, outlets, and light switches should all be placed where they can be reached from a seated position. Storage is most helpful when it is lower and easy to see, such as pullout drawers or open shelves beside the sink.

Choose Safety Features That Support Independence

The best accessibility products are the ones a person can use confidently without feeling unstable. Grab bars, shower chairs, bath benches, raised toilet seats, non-slip mats designed for wet areas, and handheld shower heads can make a major difference without a full renovation.

For a tub that cannot be removed right away, a transfer bench may allow someone to sit down outside the tub and slide across safely. This takes more floor space than a basic shower chair, but it can be a much safer choice for someone who cannot step over the tub edge. A bedside commode can also reduce nighttime trips down a hallway, especially during recovery or when fatigue and fall risk are concerns.

Avoid relying on towel bars, soap dishes, or lightweight furniture for support. They are not designed to hold a person’s weight. If a grab bar is needed, install one that is rated and mounted for the job.

Plan the Project in the Right Order

Start with the non-negotiables: safe entry, toilet transfers, and bathing access. Next, address lighting, storage, faucets, and finishes. This order keeps the budget focused on the changes that protect independence first.

Before construction begins, verify plumbing locations, drain slope, wall framing, electrical needs, and ventilation. Curbless showers may require floor modifications, and moving a toilet or drain can add significant cost. In some homes, a less invasive improvement package delivers the better value: widen the doorway where possible, add properly mounted grab bars, use a transfer bench, improve lighting, and choose a raised toilet solution.

Good lighting deserves special attention. Bright, even lighting near the toilet, sink, and shower helps with visibility, while a night-light or motion-sensor light can make overnight bathroom trips safer. Keep switches easy to reach and use contrasting colors between walls, fixtures, and flooring when visual clarity is a concern.

A well-planned bathroom does more than meet measurements. It gives someone a little more privacy, a safer routine, and the confidence to keep living at home on their own terms.
